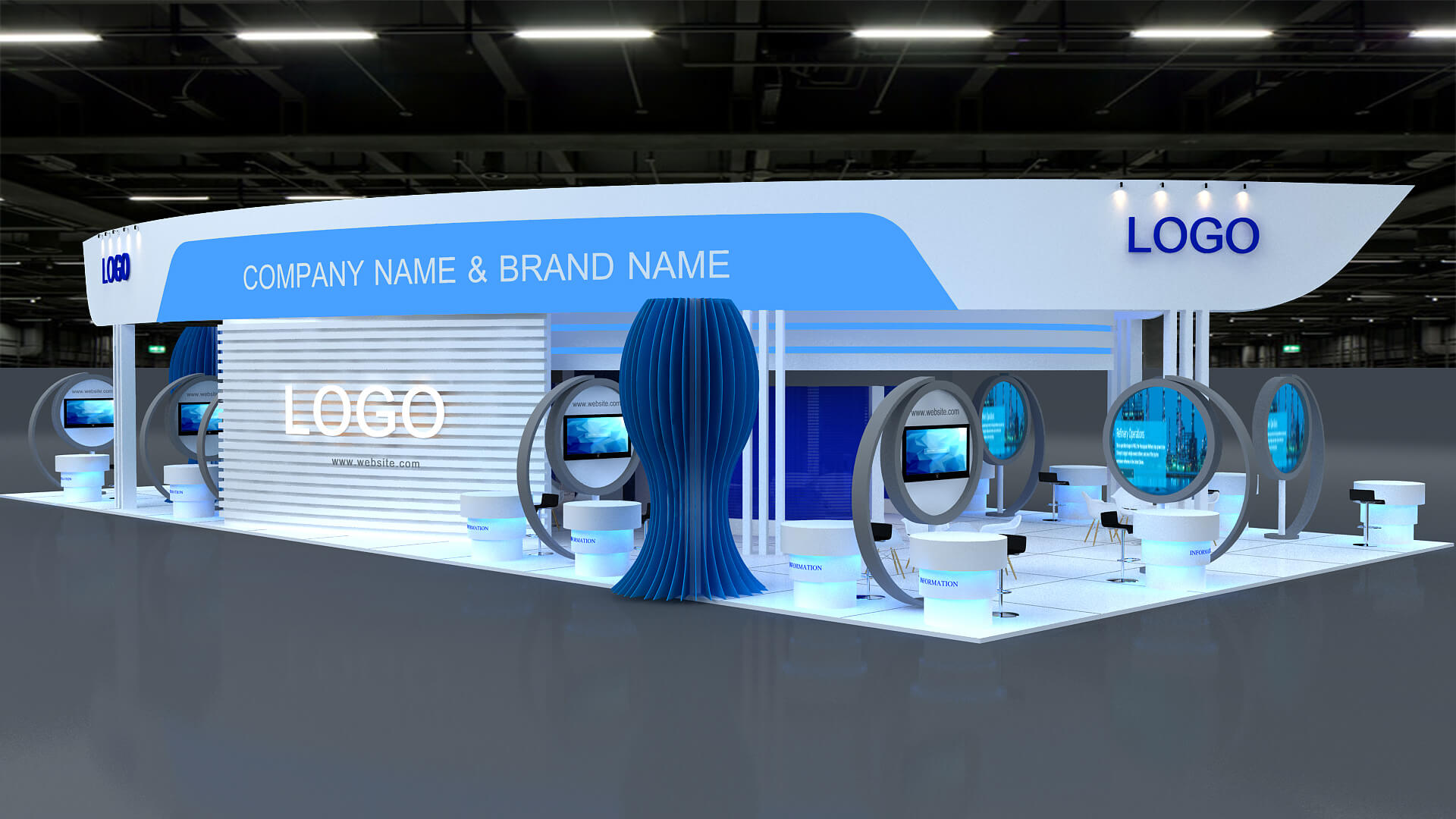

Exhibitors typically commit to a trade show booth months before the event — booking space, briefing a fabricator, finalizing a budget — often with only a floor plan and a rough concept to work from. 3D rendering closes that gap, letting a team see, refine, and get internal sign-off on a booth design long before it's physically built. Here's how it works, what it costs, and what to look for if you're commissioning one.
Why 3D Rendering Matters for Trade Show Booths Specifically
Budget commitment happens early. Booth fabrication is expensive, and changes after production starts are costly or impossible. A rendering lets stakeholders catch design issues — awkward sightlines, a logo that's too small from the aisle, a layout that doesn't support expected foot traffic — while it's still a file, not a physical structure.
Booths are temporary, so there's no "see it built first" option. Unlike a permanent retail space, a trade show booth typically exists for a few days. There's no soft-launch or gradual refinement — it has to work the first time, which makes pre-visualization more valuable here than in almost any other design context.
Internal stakeholders are often geographically distributed. Marketing, sales, and leadership teams weighing in on booth design aren't always in the same office, let alone the same city as the fabricator. A rendering gives everyone a shared, accurate reference to react to, rather than relying on a 2D floor plan and imagination.
Booths compete for attention in a crowded hall. A rendering lets you evaluate how a design actually reads from a realistic viewing distance and angle — critical, since a booth that looks great in an isolated CAD view can disappear visually next to a neighbor's louder design.
What a Trade Show Booth Rendering Typically Includes
Full booth structure — walls, flooring, ceiling treatments, and any custom architectural elements
Branding integration — logos, signage, and graphics applied accurately to scale and placement
Lighting design — since booth lighting differs significantly from ambient hall lighting, a good rendering should reflect the actual planned lighting setup, not generic illumination
Furniture and fixtures — seating, product displays, counters, and demo stations
Technology integration — screens, interactive displays, or AV elements shown in context
Crowd/scale context — some renderings include human figures for scale, helping stakeholders judge whether walkways and gathering spaces feel appropriately sized
The Process, Step by Step
1. Brief and floor plan. The starting point is your actual booth footprint (provided by the show organizer) plus your design brief — objectives, brand guidelines, must-have elements, and budget range.
2. Concept and layout. Initial spatial planning — where the main structure sits, how traffic flows through the space, where key moments (product demos, meeting areas, a reception desk) are positioned.
3. 3D modeling. Building the booth structure and major elements in 3D based on the approved layout.
4. Materials, branding, and lighting. Applying real materials, accurate brand graphics, and a lighting setup that reflects how the booth will actually look under show conditions.
5. Rendering and revisions. Producing final images or a walkthrough animation, with typically one or two rounds of revision before the design is locked for fabrication.
What It Costs
Pricing varies by booth size and complexity — as a general 2026 guide (confirm current rates directly):
Deliverable | Typical Range |
|---|---|
Small booth (single still render, under 10x10 ft) | $500 – $2,000 |
Medium booth (multiple angles, 10x20 ft or larger) | $2,000 – $6,000 |
Large custom/island booth (full render set) | $5,000 – $15,000+ |
Animated walkthrough of the booth | $3,000 – $10,000+, length-dependent |
Cost is driven primarily by booth size and structural complexity, the level of custom branding and detail, whether an animated walkthrough is needed in addition to stills, and turnaround time.
Timing: Start Earlier Than You Think
Booth rendering needs to happen early enough that the fabricator still has time to build from the finalized design — which means the rendering process itself needs to start well before your show date, accounting for concept development, revisions, and internal approval cycles on your side. A rushed rendering timeline usually means a rushed fabrication timeline right behind it, which is where avoidable mistakes creep in.
What to Ask a Studio or Fabricator
Have they rendered booths for your specific hall or show before? Familiarity with a venue's ceiling height restrictions, aisle regulations, or common booth configurations can save real back-and-forth.
Does the rendering process include fabrication-ready specifications, or is it purely a visualization exercise separate from what the fabricator needs? Some studios hand off cleanly to a builder; others produce a beautiful image that still needs translation into buildable specs.
How many revision rounds are included, and what's the process for getting sign-off from multiple internal stakeholders?
Can they turn around a rendering fast enough for your actual show timeline?
Getting Started
Having your booth's exact floor plan dimensions (from the show organizer), your brand guidelines, and a clear list of must-have elements ready before your first conversation with a studio will get you the fastest, most accurate quote.
